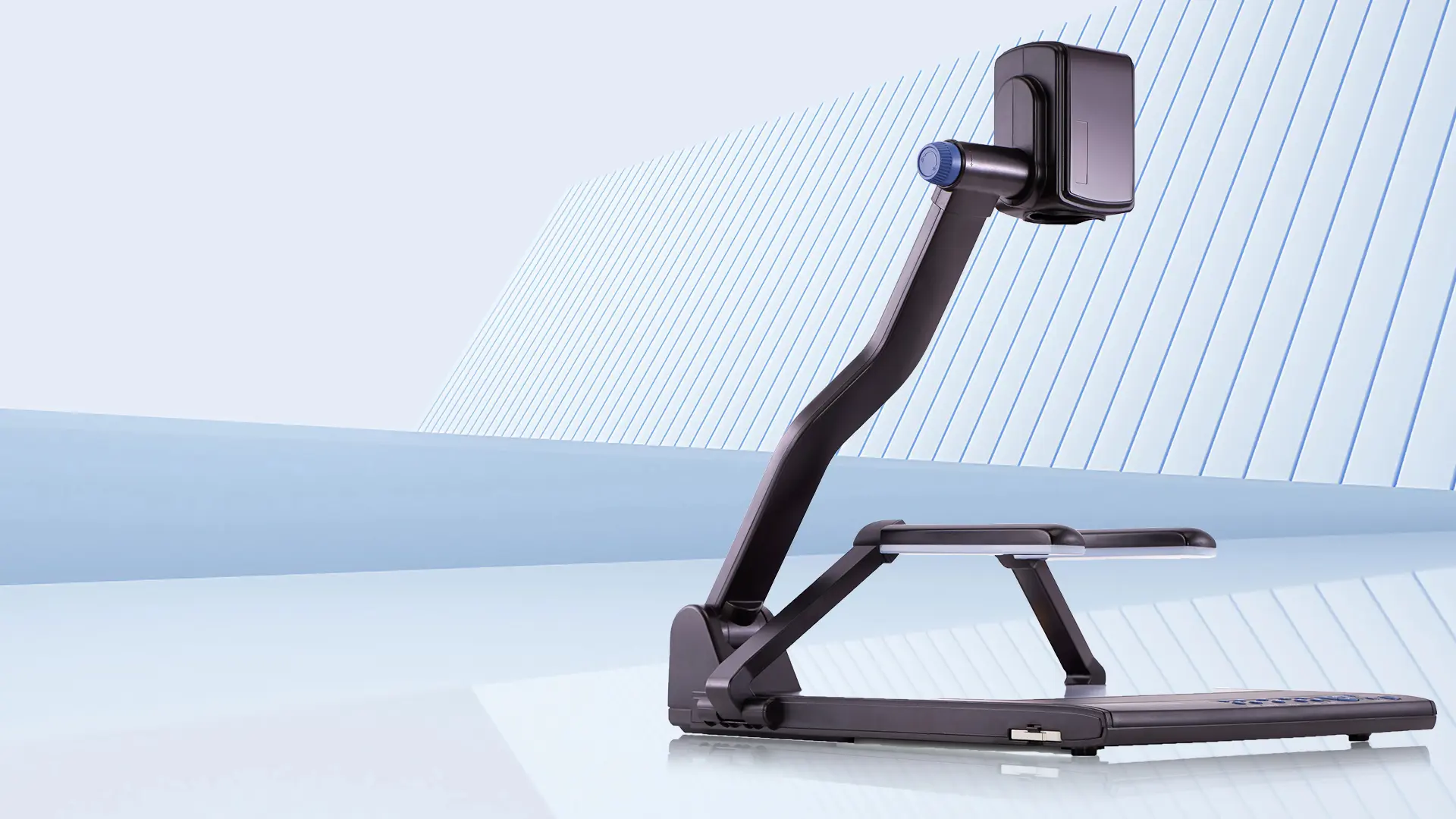

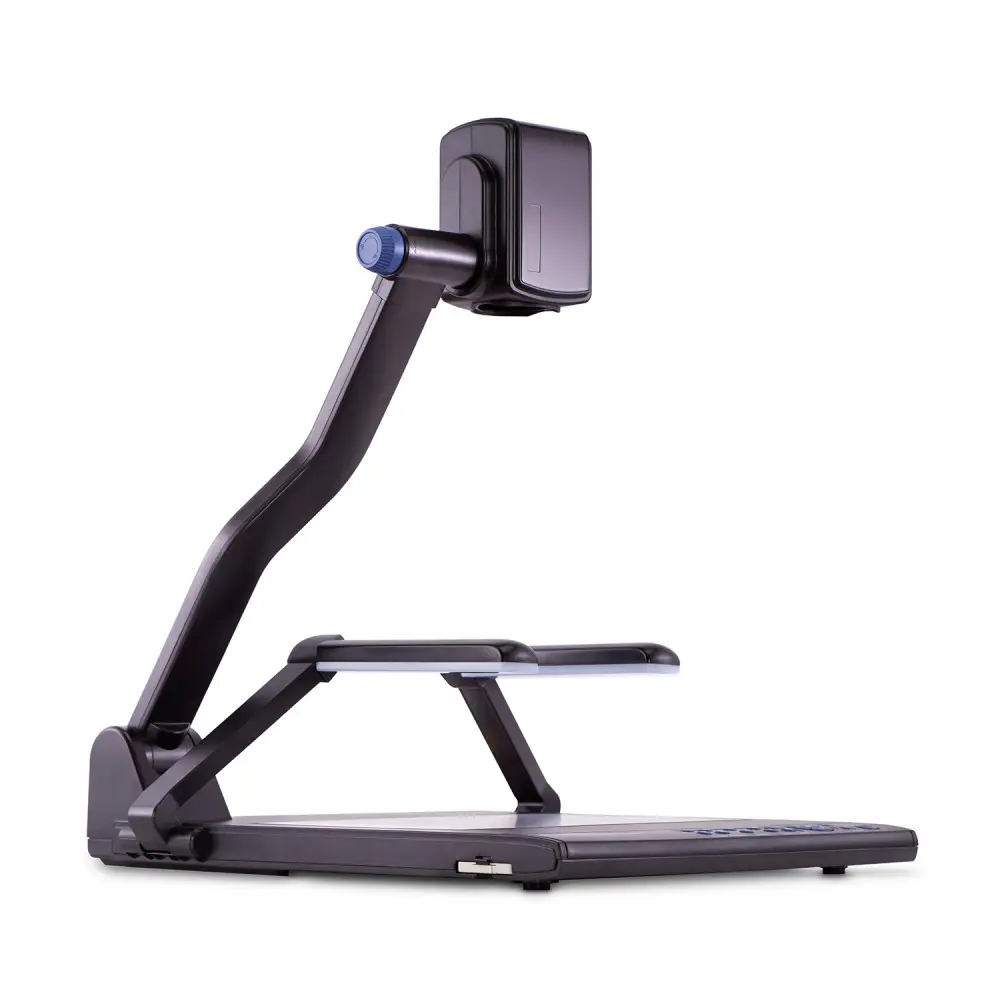

Flatbed Document Camera

1080P FHD

10x Optical zoom
10x Digital zoom

2x LED Arm lights
1x Backlight

Mouse Connection

Remote Control

Internal Memory

Multiple Input/Output

Autofocus
CenterCam 3900H2's Zoom Advantage: 10x Optical & 10x Digital
With an added touch transceiver, you can interact wirelessly with your computer or phone on a touch screen.


The Powerhouse of High-Definition Pixels

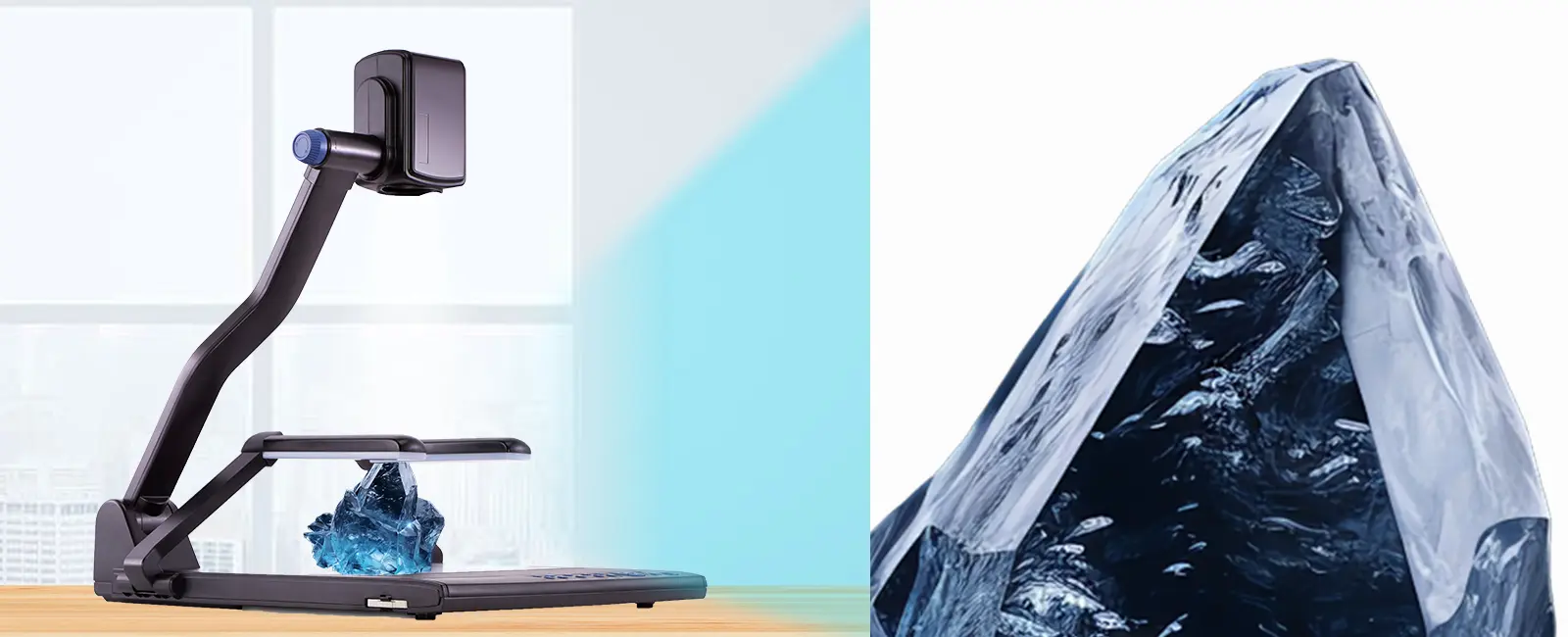

The CenterCam 3900H2 with 1080P FHD resolution presents every document detail perfectly. Its sharp imaging captures text and graphics precisely, ensuring a flawless display for teaching, business, or digitizing needs.
illuminate with Precision

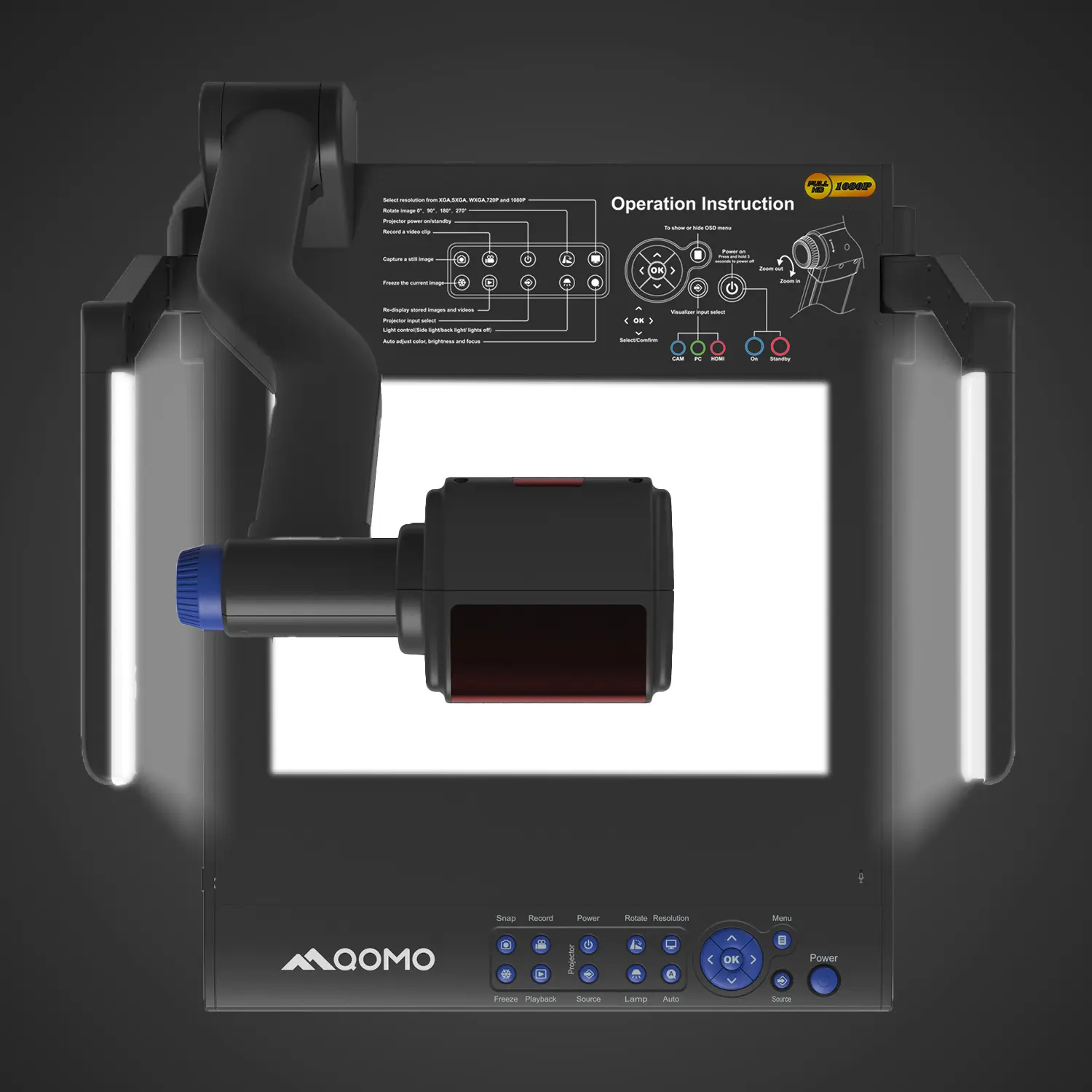

The CenterCam 3900H2 is equipped with 2x LED Arm lights and 1x Backlight. You can freely adjust the position of the LED Arm lights to precisely illuminate any area you need. Also, you can turn on the backlight to provide a favorable lighting condition for your documents or items.

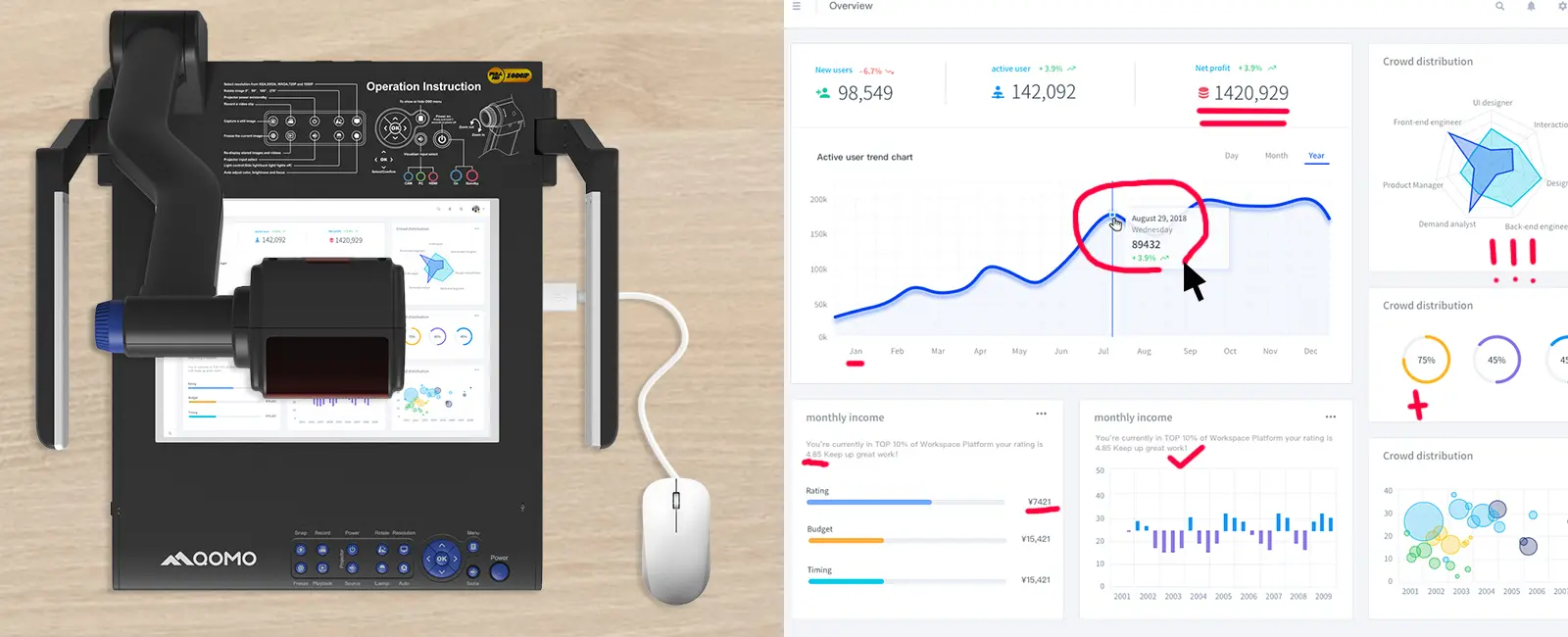

Mouse connection unlocks the powerful whiteboard function
Connecting a mouse enables seamless annotation, doodling, and note-taking with ease, thus enhancing the effectiveness of your presentation.

Simple Operations, Mighty Capabilities Unleashed

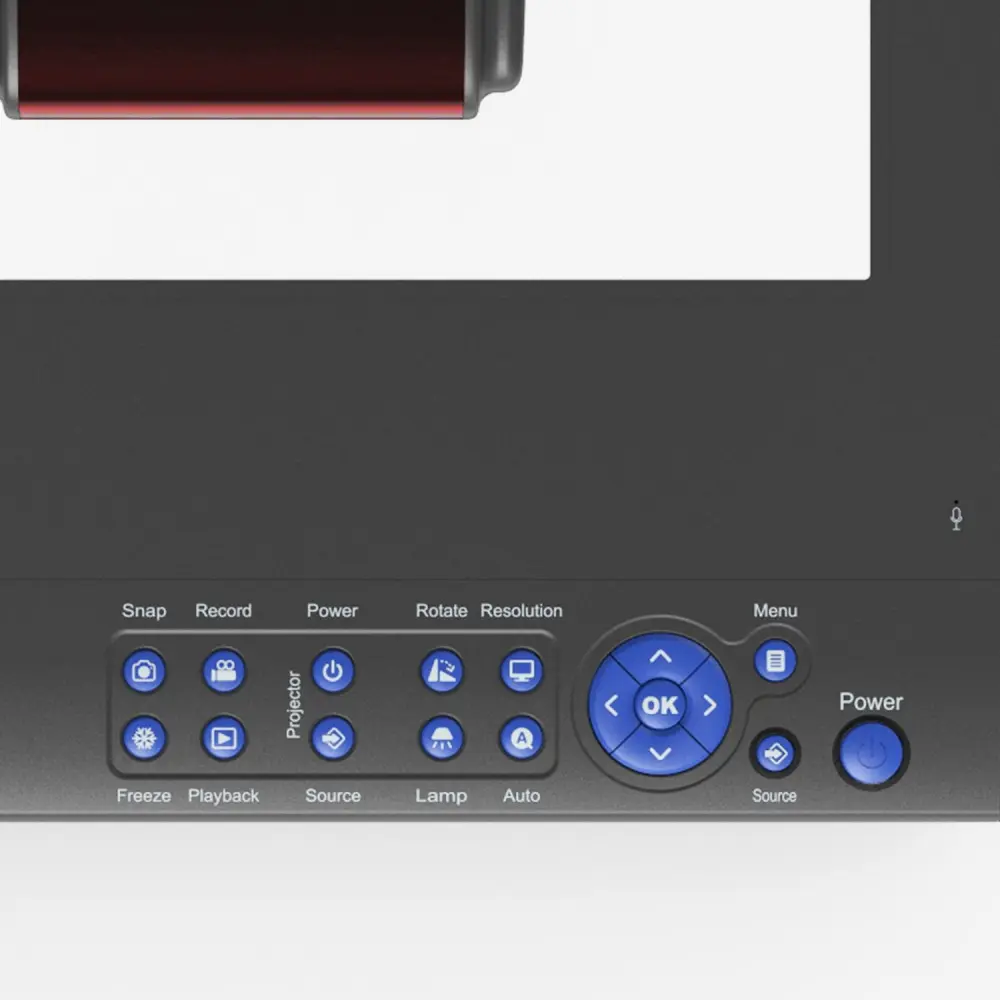

The CenterCam 3900H2 is equipped with a user-friendly operation panel. Each function is clearly labeled, enabling you to start using it quickly and easily.

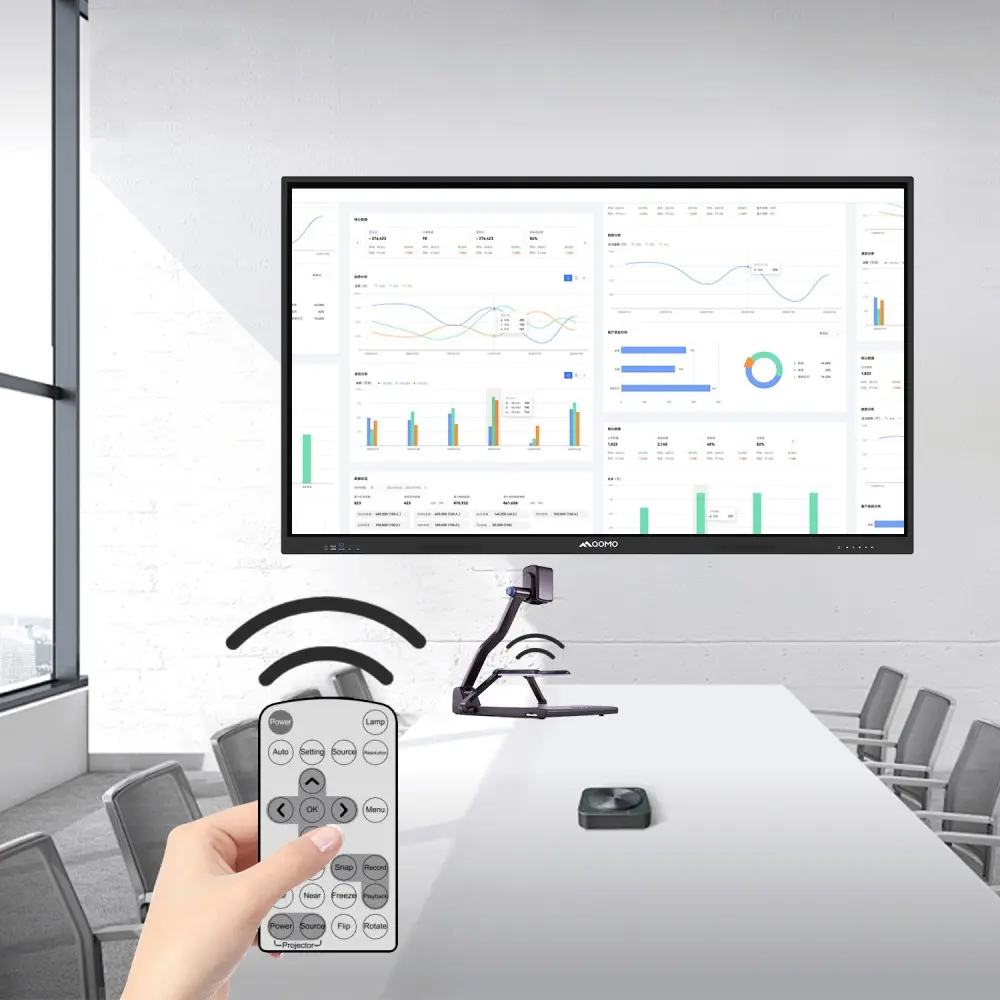

Remote Control, Distance No Longer a Concern
Work content can be preserved without the necessity of additional devices
Equipped with built-in internal memory, the CenterCam 3900H2 can store captured content without a computer or other external devices, ensuring data safety and easy access.

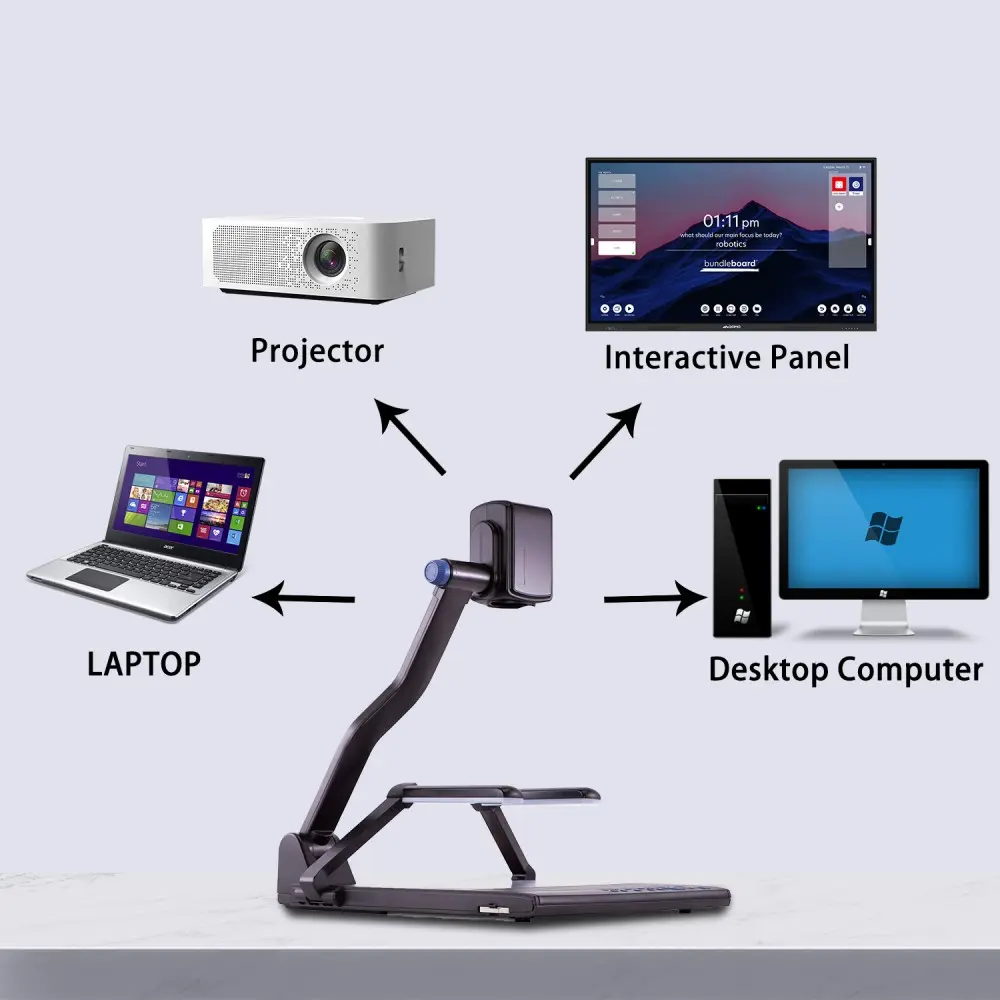

Multiple Input/Output: Seamlessly Bridge Your Devices
The Finest Professional Document Camera for Presentations - QCamera!
QCamera by QOMO enables real - time streaming from cameras and document cameras. Connect a QOMO document camera to your computer to stream live images from documents and objects directly. In the QCamera app, freely adjust resolution, zoom, rotate, mirror, freeze, and save snapshots and recordings. Use the annotation tool to draw and write on captured media. QCamera is user - friendly and ideal for teaching, presentations, and demonstrations.

-
Compatible with Various Systems
We have provided you with the QCamera versions compatible with Mac OS, Windows OS, and Chrome OS.
-

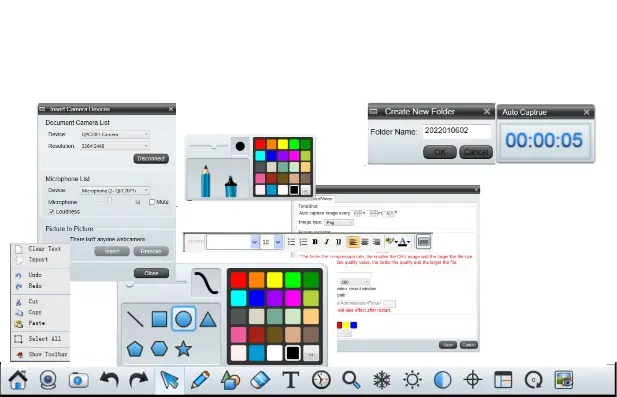

Containing Multiple Tools Inside
QCamera is a powerful tool for document presentation. You can utilize a variety of tools such as Zoom out, Zoom in, Freeze, Auto focus, Rotate, Snap, Select, Pen, Figure, Text, and Video Recorder.



QOMO is dedicated to presenting you with a customized office experience that combines intelligence and efficiency
Does the operation panel of the CenterCam 3900H2 come with an instruction manual?
Is the functionality of the remote operation of the CenterCam 3900H2 the same as that of the panel control?
Product Specifications
MODEL | QD3900 H2 |
lmago Sensor | 5MP CMOS |
Optical Zoom | 10X |
Digital Zoom | 10X |
Frame Rate | 30 fps |
Video Resolution | XGA: 1024*768 SXGA:1280*1024 HD:1920*1080 720p:1280*720 |
Lights | 2x LED Arm Lights, 1x LED Backlight |
Camera Rotation | Vertically 330° |
Image Rotation | 0°/90°/180°/270° |
Focus | Auto and Manual |
White Balance | Auto |
Effects: Negative/Positive, B&W, Mirror,Freeze | Yes |
lmago Split & Titlo Split | Yes (*some features available on Windows only) |
Time Lapse Photos | Yes |
Onboard Memory | Yes (512MB max - photos only) |
USB Memory slot | Yes |
SD Card slot | Yes (32GB max) |
Remote Control | Yes |
Mouse Control | Yes |
Built-in Mic | Yes |
Inputs | VGA [RGBDB 15FLC] (1),Audio (1), HDMI 1.3 (1), USB Type A (for mouse control or flash drive) (1), Mic (built-in) (1),RS232 DB9 (1), RS232 PS2 (1) |
Outputs | VGA [RGBDB 15FLC] (1), HDMI (1), Audio OUT (Mini Jack) (1) |
Resolution through UsB | 720P |
Software Compatibility | Windows, Mac, Chrome OS |
USB Connector | USB 2.0 (Type A, UVC Webcam) |
Power Consumption | 12W |
shooting Area | 380 x 285mm |
Dimensions Folded (WxDxH) | 20"x16"x4.7"(510x410 x120mm) |
Dimensions Set Up (WxDxH) | 20"x21"x22.4"(510x530x570mm) |
Packing Dimensions (WxDxH) | 23.6"x7.9"x18.9"(600x200x480mm) |
Weight | NW: 11 lbs (5 kg), GW: 15.4 lbs (7kg) |
Accessories | AC power cord, RGB cable, A-B USB cable, AC adapter, projector RS232 cable (6-pin to 9-pin), software CD.infrared remote control, warranty card |
